Compact Structure Radio Frequency Rotary Joint For Traffic Control System
CENO's RF rotary joint series, means a group of coaxial rotary joints.it has compact structure ,strong anti interference ablility, easy to be integrated in other equipment. Apply to RF signal and high data speed rate transmission.Less than3 GHz is defined as middle and low frequency,adopt coaxial way to implement. It widely used in traffic control system and antenna system etc.
Besides,CENO RF rotary joint channel number range from 2-5 channel.Different connector type for customer choosing.
Typical Uses
◆Traffic control system
◆Antenna system
Specification

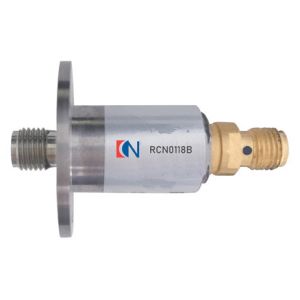

| RCN0118B Specification | Picture |
| Channel number | 1 |  |
| Frequency range | DC to 18 GHz |
| Connector | SMA female (50ohms) |
| Rotating speed,max | 500rpm |
| Peak power,max | 5000W |
| Working temperature | -55℃~+85℃ |
| Insertion loss,max | 0.30dB |
| Insertion loss,WOW | 0.05dB |
| IP protection grade | IP40 |
Outline drawing
Q: How does slip ring work?
A: A slip ring is an electrical connection designed to pass the flow of current from a stationary device to a rotating one.This electromechanical device is also known as a rotary electrical connector or rotary electrical joint. Electrical slip rings are free to rotate without limitations, unlike cables which twist and eventually break.In general, conductor rings are mounted on the rotor and terminated with leadwires that run axially through the rotor to one end. Brushes are secured by a brush holder that is mounted to the housing.Electrical slip rings work by holding a sliding contact (brush) against a ring (conductor ring). One part, typically the brush, is stationary while the other, typically the conductor ring, rotates.Electrical components incude the brush, contact ring, and electrical connectors.They are made of precision materials are selected based on requirements such as current size, voltage drop, rotational speed, temperature, resistance variation, bandwidth, and characteristic impedance.
Q: What applications are they used?
A: Typical applications refers revolving automation or control systems such as turntables, index tables, and robots. Wind turbines, semiconductor processing, printing plastic molding, CNC and MRI medical scanners, satellite communications, beverage bottle filling process, and industrial filling machine are also common slip ring applications.
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Why choose CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.
Honor
ISO9001,CE,RoHS,UL,Explosion-proof
Service CENO provides
Solution offerring for 360° rotation system.
Mass and customized production.
24 hours,7days consultant service.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
